Parameters

• Model: A380
• Chip Chip Ingenic T10
• CPU 1.2GHz
• DDR Embedded 16bit@400Mhz DDRII;512M
• Sensor Sensor H42 1/4 INCH CMOS Sensor
• Pixels 1920×1080（2.0MP）
• Lens Lens/viewing angle 3.6mm
• View angle 60°
• Night vision Dual IR-CUT Filter auto switch
  IR distance 8M
• Connect Network Protocol HTTP,FTP,TCP/IP,UDP,SMTP
• DHCP, PPPoE, DDNS, UPnP, RTSP
• Wired network Support
• WIFI WIFI（IEEE?802.11b/g/n）
• Wireless connect SmartLink Connect
• onvif Support Onvif, RTSP
• P2P Support
• Network” Compression Format H.264,MJPEG
• Resolution 960P(VGA)
• Frame rate 25fps
• Code Stream Dual stream
• Multimedia Support
• Motion Detection support
• E-mail/FTP alarm support
• P/T Pan:355°,Tilt:45°
• Recording 24-hour loop recording.
• Preset position Support 8
• Clock display Button adjustment
• Audio alarm support
• Storage Local Storage support up to 64GB MicroSD card ；NVR;PC
• audio Built-in microphone support
• Compression format Adpcm
• Internal speaker 8R2W
• General Power Consumption DC5V/2.0A
• Antenna – Built in 3dB
• Dimension 188*110*80mm
• Color box size 280*142*98mm
• Carton size 635*420*580mm//32
• Operating Humidity 20% ~ 85%, non-condensing
• Operating Temperature –10°C～60°C
• Power dissipation max 5w

Function Instructions:

Small Body Size Big Function

Applications Scenario

Upgraded to 2.0MP HD 1080P

HD 1080PP, Not 960P

2 Way Audio Intercom

Horizontal 355 Degree Rotation, Vertical 45 Degree Rotation

App Monitoring Everything

Support Both Wi-Fi Wire and Wireless Connection

Record and Playback Video

10m Distance IR Night Vision

Day and night mode switch automatically,no need to turn on manually

Motion Detection

To Protect your home or baby security

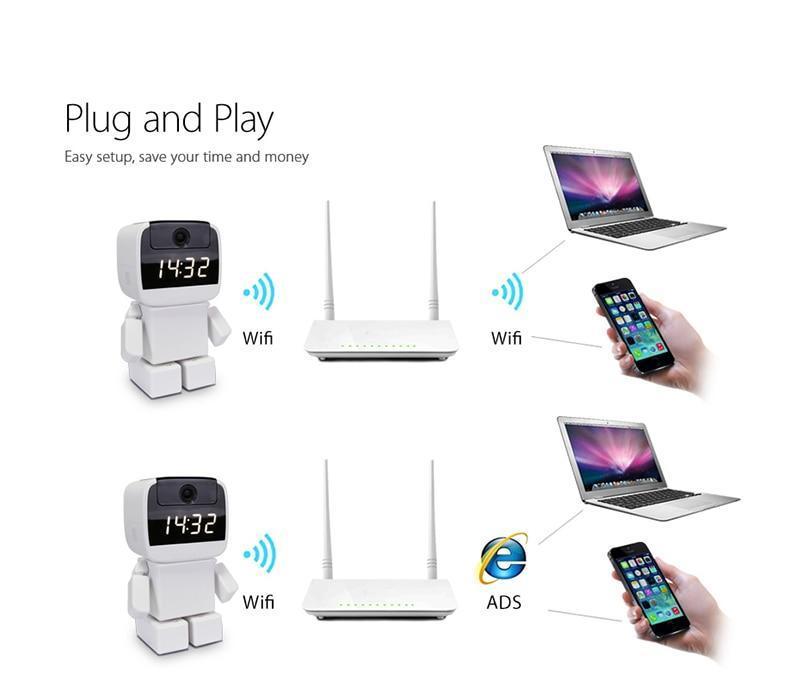

Simple WIFI Connection

Plug and Play

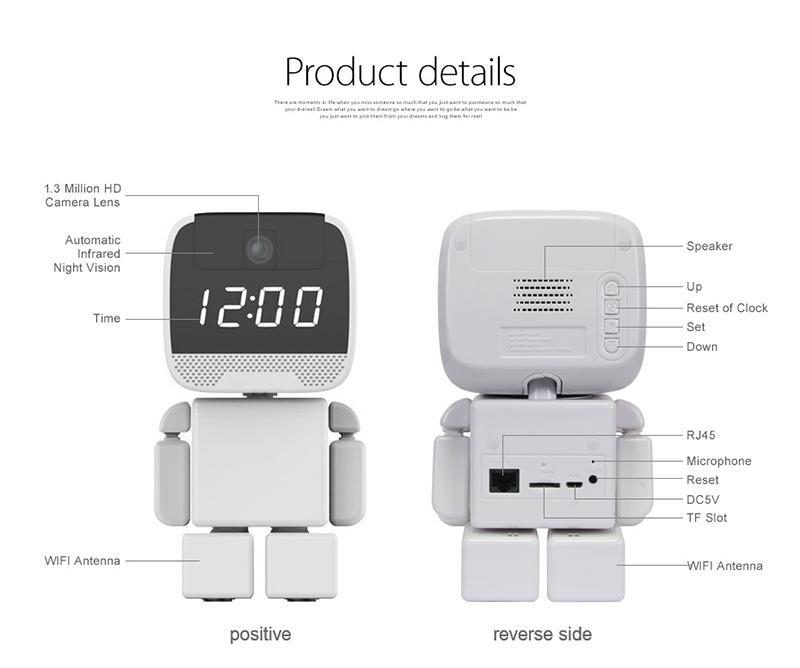

Product Details

for button function introductions

Back side and button and side

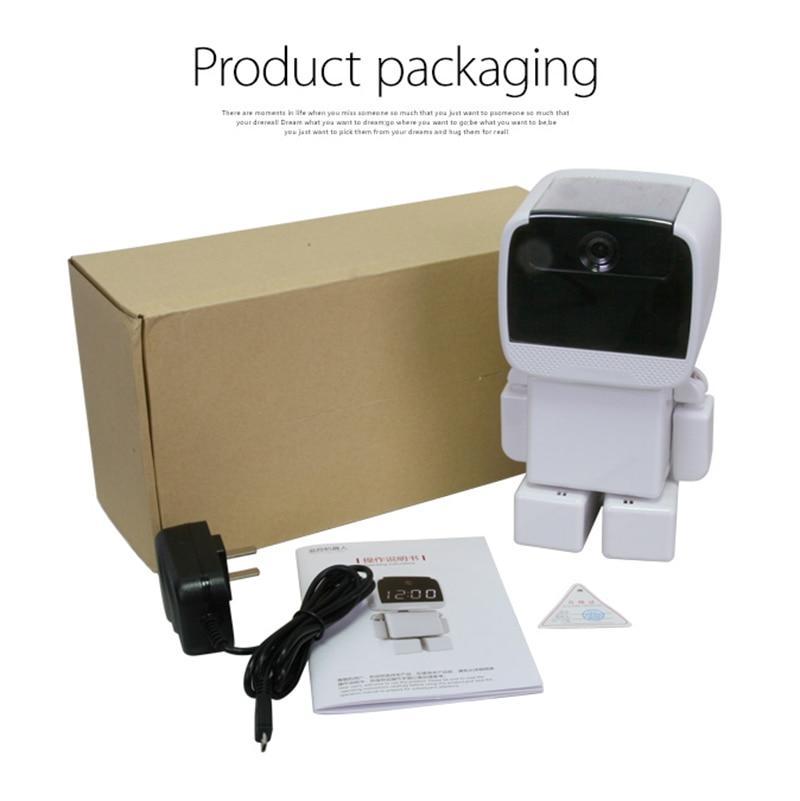

Accessories

• 1x Robot Camera
• 1x Adapter
• 1x USB Cable
• 1x Manual 1xBox
