Nedan följer produktdata på engelska:
Origin: United States
Item Type: Smart Thermostat
Power Supply: 95-240VAC/50~60HZ
Fan Relay Amps: Resistance: 5A Inductive: 3A
Valve Relay Amps: Resistance: 3A/ Inductive: 1A
Sensor: NTC3950, 10K
Accuracy: +-0.5’C
Set Temp. Range: 5 -35’C
Display Temp. Range: 5 ~ 99’C
Ambient Temp.: 0 ~ 45’C
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Power Supply: 95-240VAC/50~60HZ
Fan Relay Amps: Resistance: 5A Inductive: 3A
Valve Relay Amps: Resistance: 3A/ Inductive: 1A
Sensor: NTC3950, 10K
Accuracy: +-0.5’C
Set Temp. Range: 5 -35’C
Display Temp. Range: 5 ~ 99’C
Ambient Temp.: 0 ~ 45’C
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Certification: CE
Produktdetaljer:
Instruktionsmanual:
- Med Wi-Fi: https://drive.google.com/file/d/1xt-ZfGK9-3h3uKKwX0xaEZsp8CEkTiUM

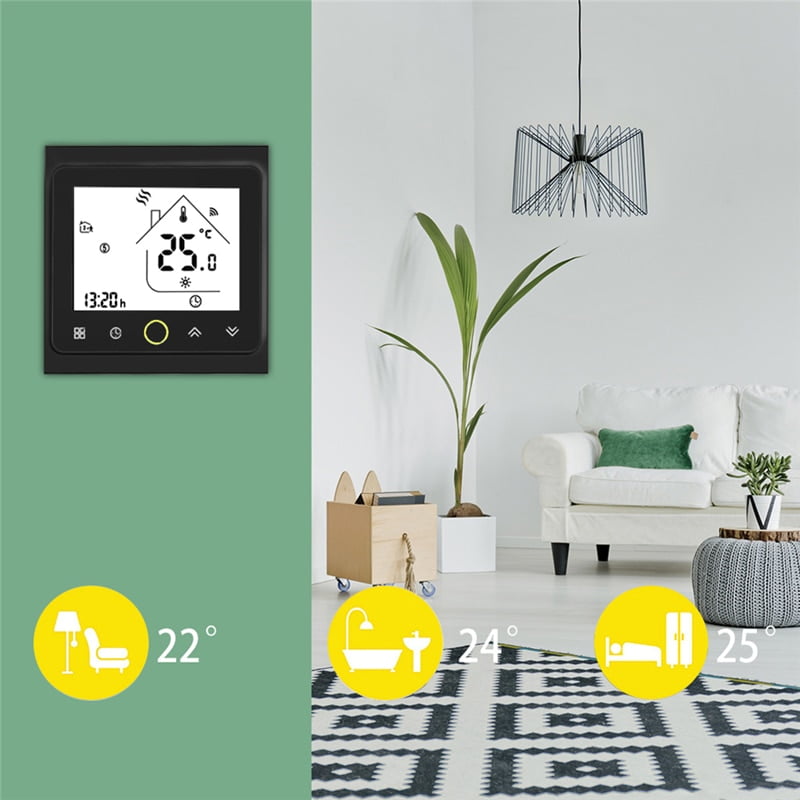

Wi-Fi Temperature Controller for floor Heating – Works with Alexa and Google Home Assistant
| INSTALLATION |
| Your thermostat is suitable foe installation within a standard 86mm pattress box or European 60mm pattress box |
| Step 1. Keep power off. See Fig 1 |
| Step 2. Remove the mounting Plate by rotating the LCD part. See Fig 2. |
| Step 3. Connect power supply, load into the appropriate terminals. (see ”Wiring your thermostat” for details and Fig 3). |
| Step 4. Fix the mounting plate into the wall with screws in the box. See Fig 4. |
| Step 5. Fasten body of the thermostat and the mounting plate through rotating. See Fig 5. |
| Step 6. Installation complete. See Fig 6. |
