ÄMNE | ÄMNESSVAR | TILLÄGG |
---|---|---|
Moderbolag | Spyder Group | Nej |
Onlineshoppar | iSwag.se, baebae.se, sexleksaken.se, shoeking.se | Nej |
Prisklass | Lägst | Nej |
Fraktländer | Polen, Tjeckien, Kina, Japan, Turkiet, Spanien, Frankrike, USA, Ryssland | Nej |
Leveranstid | Långsam | 8-45 dagar |
Måttsystem | EU, US, UK | Nej |
Orderbekräftelse | Omedelbart | E-post |
Spårnummer | Ja | E-post |
Spåradress (URL) | SPÅRA HÄR | Nej |
Nedan följer produktdata på engelska:
Answering Mode: Hands-free
Camera Sensor type: CCD
Connection Method: Wired
Display Size: 7 inches
Display Screen Type: Color Touch Screen
Material: Aluminium
Installation: Wall Mounted
Power: 15V1.2A
Waterproof: Yes
Resolution: > 420 TV Line
Doorbell: Yes
Viewing Angle (°): 90
Smart Home Interface: Yes
Access Control: Inductive Card
Technology: Digital
Camera: Color
Connection Type: Wireless
Type: Intercom System
IP Camera Interface: Yes
Sensor Size(Inch): 1/3
Kit Configuration: One to One video door phone
7″ Resolution: 1024(H)X600(V)
APP: APP Max support 8 User
Press-key: Multi-point capacitance touch screen
Indoor Monitor function: Take photo auto,visitor records


Products Introduction:

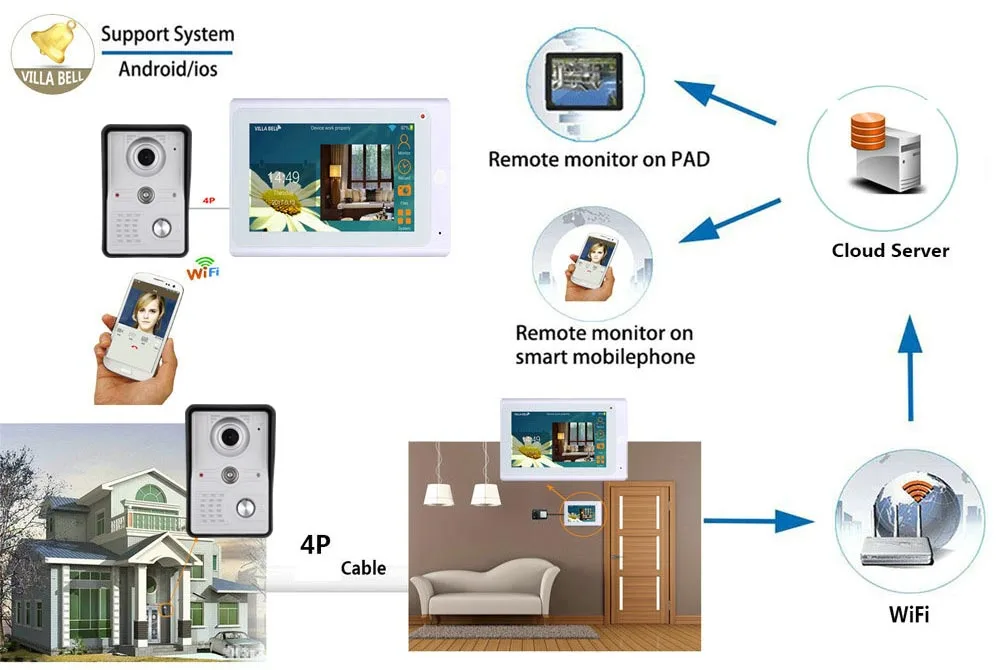

- Easy installation by yourself with the adapter and cable we provided in this kit, outdoor unit can connect to indoor monitor by wired 4P cable.When indoor monitor connected to your wireless Wi-Fi router, you can connect your mobile phone to the indoor monitor, then the mobile phone can also record video or open the door etc.
- The indoor monitor utilizes a multi-point capacitance touch screen, an Android System, that is steady and easy to operate.
- 7 inch High definition digital LCD monitor, can take pictures, visitor records and calendar function.
- The indoor monitor can take pictures manually or automatically, max supported size is 16G TF card.

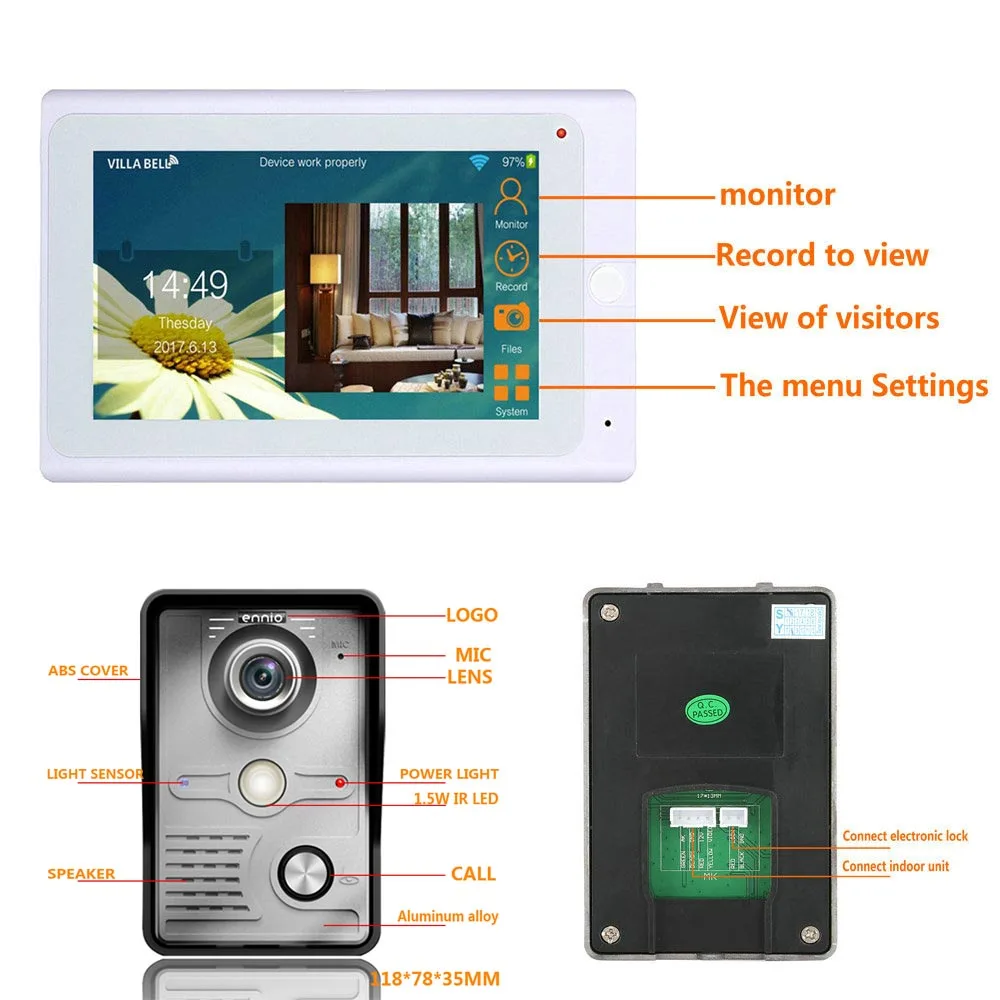

- The indoor unit comes with a monitor, intercom, unlock, hands-free and a “don’t disturb” function.
- Volume, brightness & color adjustable.
- The indoor monitor can support up to 8 mobile phone APP users simultaneously, supports iOs/Android based units
- The indoor monitor can connect to a router wirelessly.
- The mobile APP can monitor, utilize intercom, take pictures / videos and record.
- Anti-oxidation and wear-resistant outdoor unit, with a rain-cover, wall installation more convenient.
- Outdoor unit use 1000TVL analog high-definition camera,with IR-CUT.

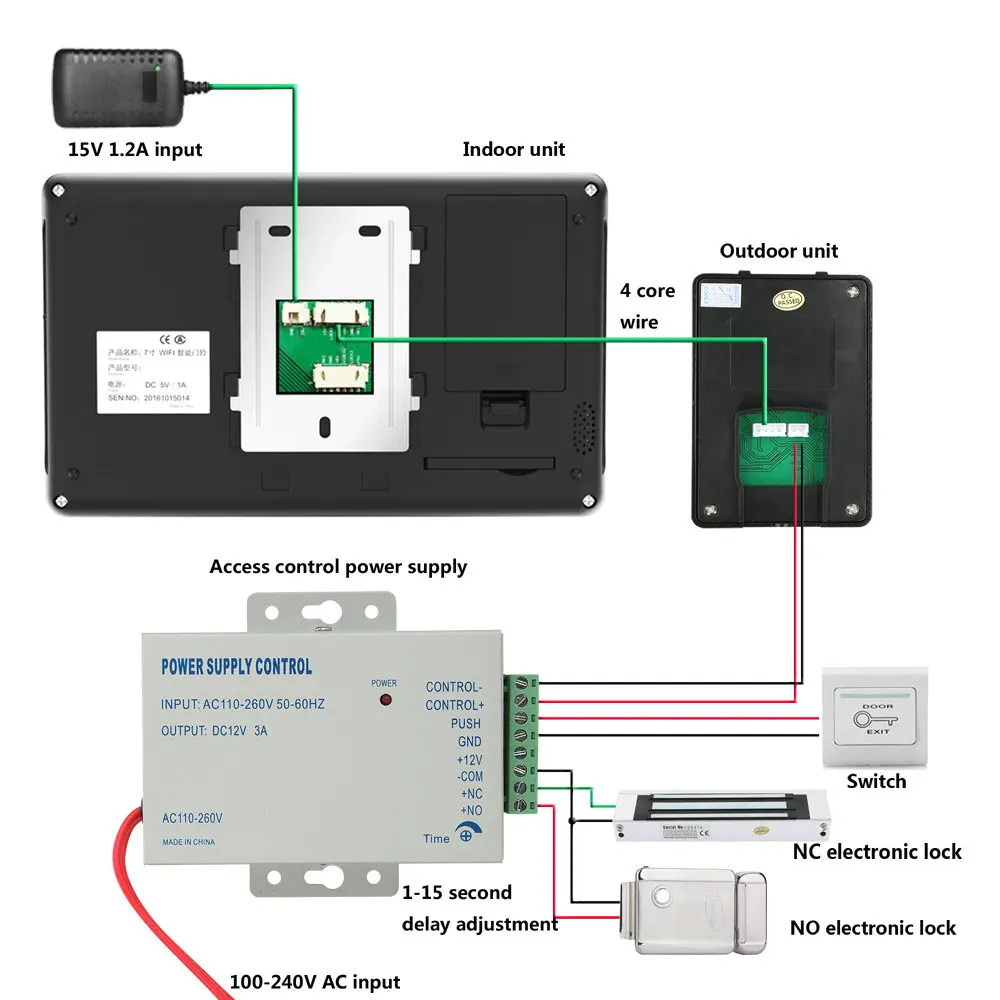

- Can connect to NO electric lock directly,with unlock delay setting.
- Come with power supply & terminal wire,user can install by themselves.
- The indoor monitor can connector to outdoor unit directly by 4-core wire.

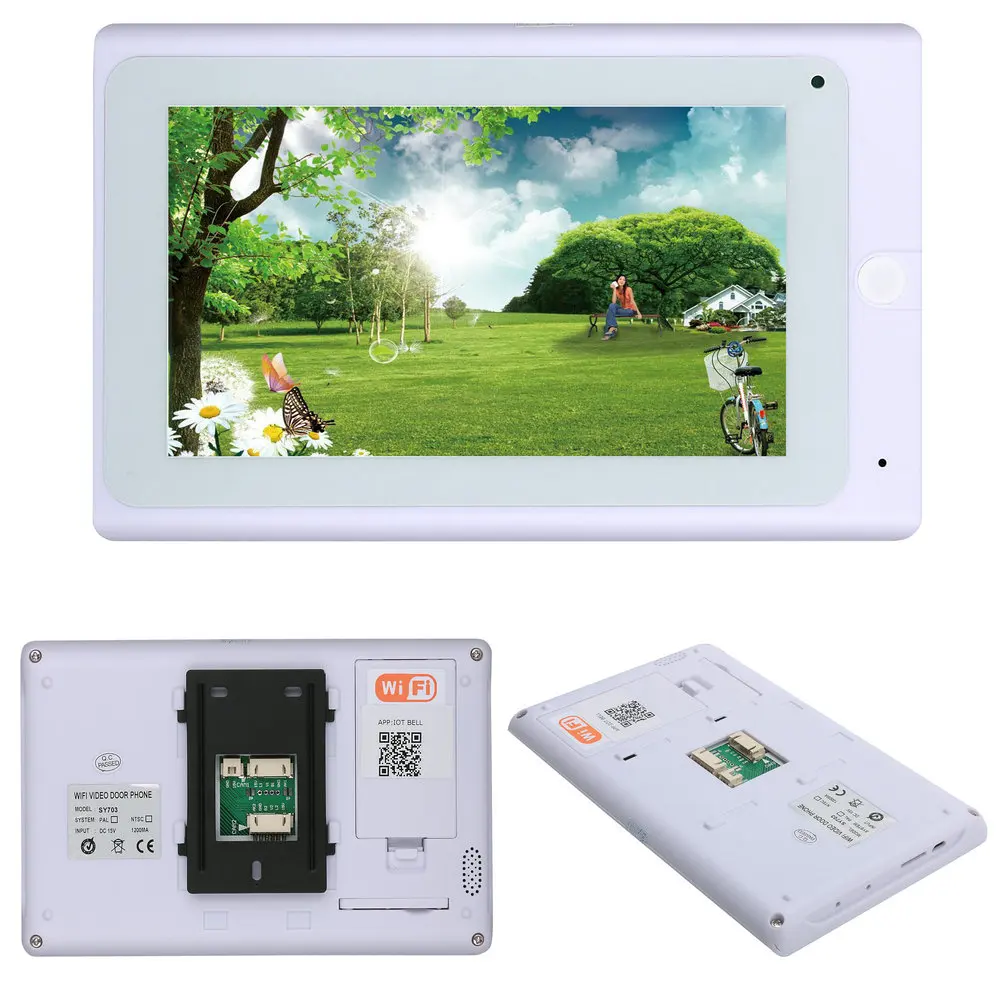

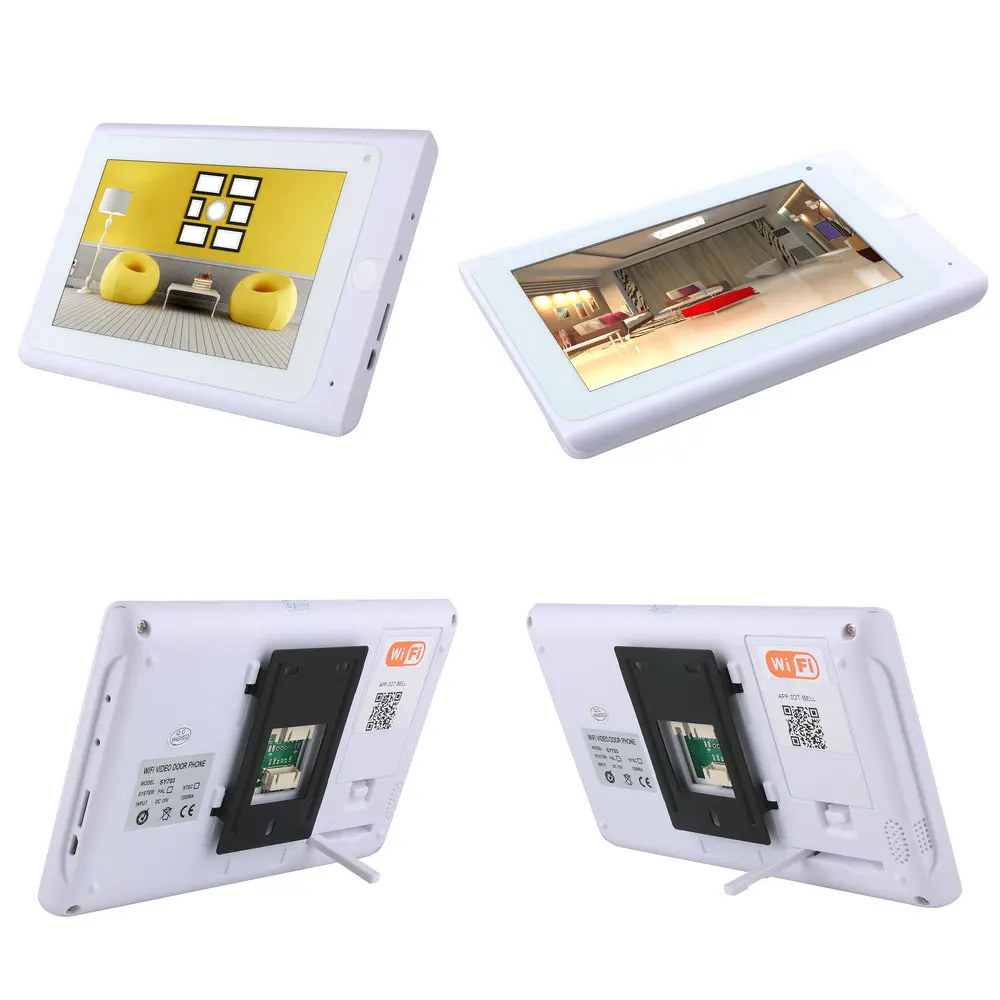

Monitor:
- Display: 7″ TFT LCD (16:9)
- Resolution: 1024 (H) X600 (V)
- Unlock: Support mobile phone and tablet to unlock
- Additional memory: Support additional TF card (16GB max.)
- Touch : Yes
- Wi-Fi: Yes
- Power supply: DC15V1.2A
- Installation: Surface mount
- Size: 209 x 133 x 18mm

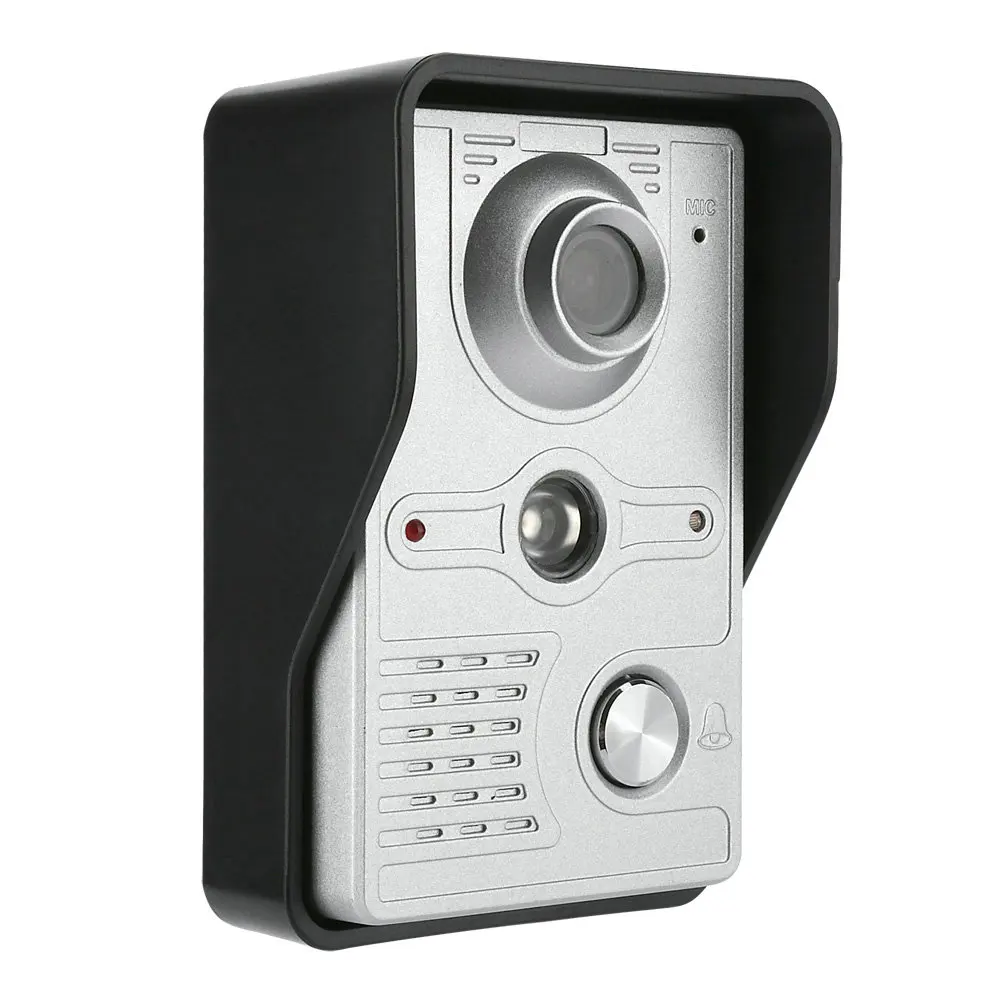

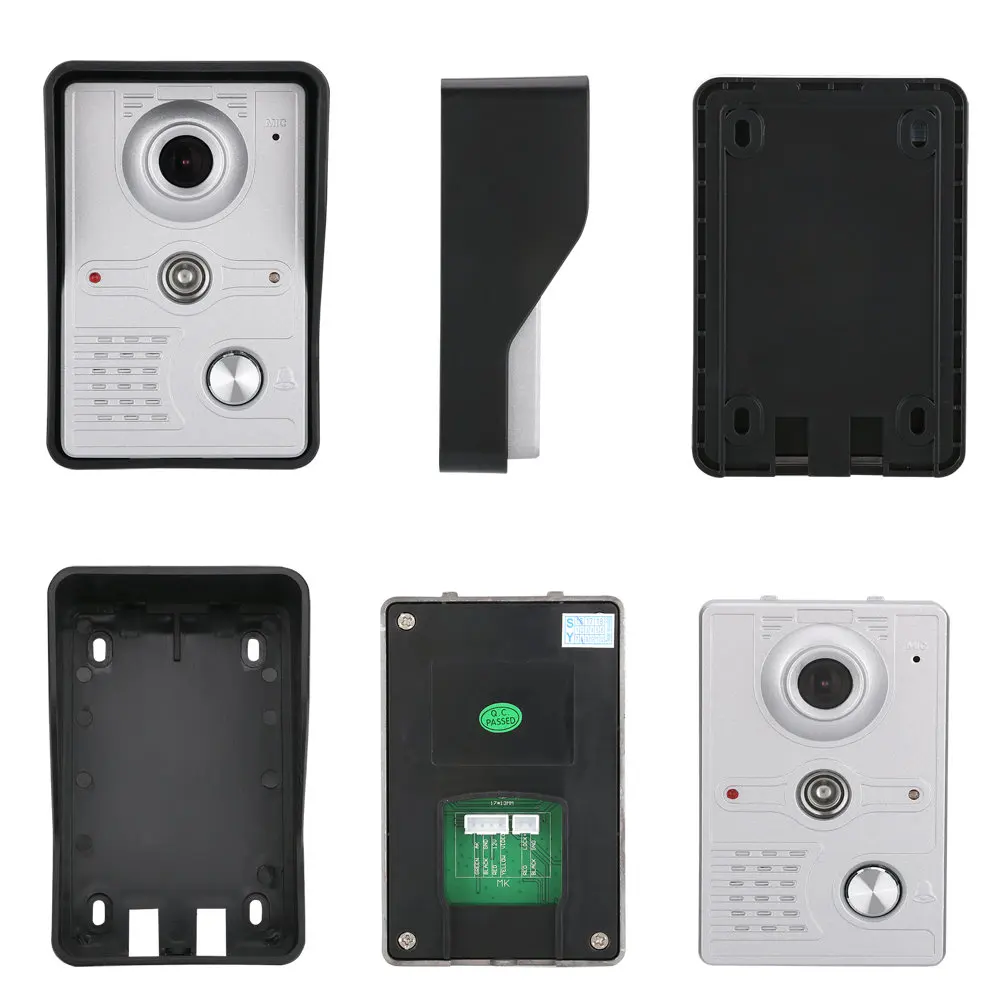

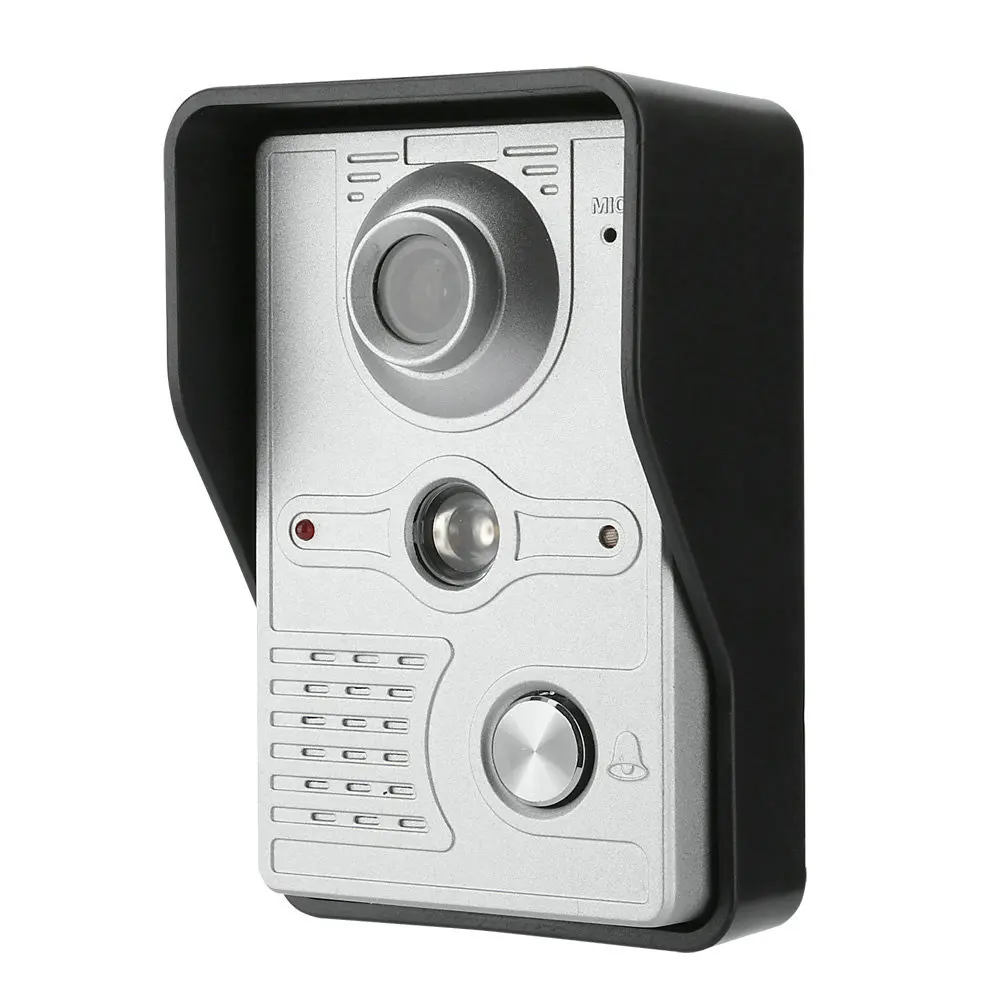

Camera:
- Camera sensor: 1/3 inch
- View angle: 92°
- Definition: 1000TVL
- LEDs for night: IR LEDs (180°)
- Anti-oxidation aluminium alloy panel
- Rainproof, Dust-proof and Anti-vandal
- Power consumption: 2W Max
- Installation: Surface
- Size: 118 x 78 x 35mm

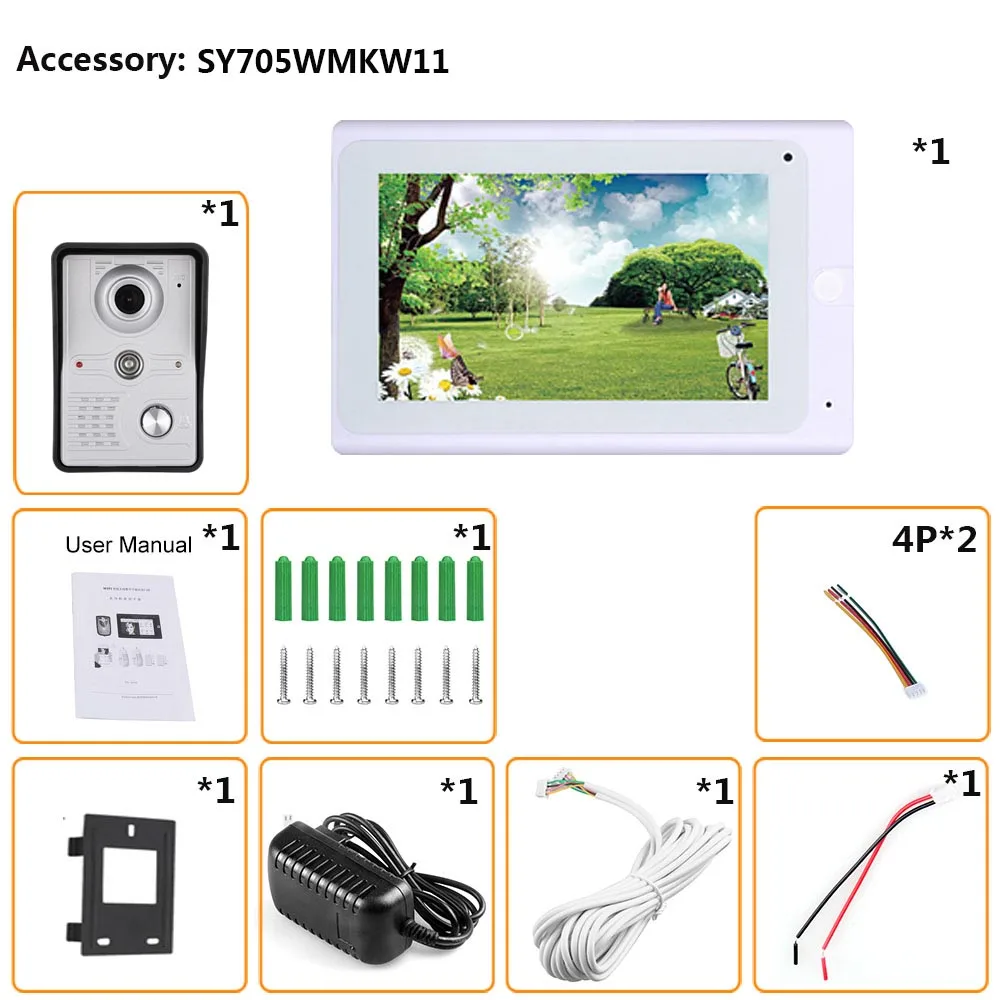

Package contents:
- 1 x Indoor Monitor
- 1 x Outdoor Unit
- 1 x Power Supply
- 1 x 4-core terminal wire (5m)
- 1 x unlock terminal wire
- 1 x Manual
- 1 x Mounting plate
- 1 x Color package
- Screws
